Rough Surface CBN Cubic Boron Nitride Powder 60/40 Micron Size

Brand Name : Henan Baililai Superhard Materials Co., Ltd.

Model Number : CBN Micron Powder

Certification : Henan Baililai Superhard Materials Co., Ltd.

Place of Origin : Henan China

Packaging Details : 4-layer packaging bag upside down head packaging, label affixed to the outermost layer

Product name : CBN Micron Powder

Application : Abrasive refractory Industry

Usage : Polishing

state : powder

packaging : Bag and then carton

Contact Now

CBN Micron Powder

Introduction:

CBN powder refers to fine particle size of 60/40 micron CBN particles, is the choice of high-quality single crystal CBN as raw material, crushing, shaping, purification, grading and other processes processed. CBN powder, suitable for resin binder, ceramic binder and metal binding Agent, widely used in grinding, polishing ferrous metals;also used in the production of high-quality PCBN poly wafer and PCBN composite sheet.

Specification table:

Grade Size	CBN-MB10	CBN-MB30	CBN-MA20
0-0.5	Y	Y	Y
0-1	Y	Y	Y
0-2	Y	Y	Y
1-2	Y	Y	Y
1-3	Y	Y	Y
2-3	Y	Y	Y
2-4	Y	Y	Y
2-5	Y	Y	Y
3-5	Y	Y	Y
4-6	Y	Y	Y
4-8	Y	Y	Y
5-7	Y	Y	Y
5-10	Y	Y	Y
6-12	Y	Y	Y
7-10	Y	Y	Y
8-12	Y	Y	Y
8-16	Y	Y	Y
10-14	Y	Y	Y
10-20	Y	Y	Y
14-20	Y	Y	Y
12-22	Y	Y	Y
15-25	Y	Y	Y
20-28	Y	Y	Y
20-30	Y	Y	Y
22-36	Y	Y	Y
20-40	Y	Y	Y
28-40	Y	Y	Y
30-40	Y	Y	Y
40-50	Y	Y	Y
40-60	Y	Y	Y
50-60	Y	Y	Y

Comparision table:

Chinese standards	International ctandards	Japaneses standards/number of entries(#)	Russia GOST9206-80	Median D50 (μｍ)
w0.5	0-0.5	30000	0.5/0	0.20～0.30
w1	0-1	15000	1/0	0.6～0.8
w1.5-	0-2	13000		0.8～1.0
w1.5	1-2	12000	2/1	1.1～1.3
w2.5	1-3	10000		1.6～1.8
W3	2-3	7000	3/2	1.9～2.1
w3.5	2-4	6000		2.6～3.0
W5-	2-5	5000	5/3	3.1～3.4
w5	3-6	4000		3.5～4.2
W5+	4-6	3500		4.4～5.0
w7	4-8	3000	7/5	5.0～6.0
W7+	4-9	2500		6.1～6.5
w10-	5-10	2000	10/7	6.5～7.3
w10	6-12	1800		7.3～8.3
w10+	8-12	1600		8.3～9.0
w14-	7-14	1500		9.1～10.5
w14	8-16	1300	14/10	10.0～12.0
w20-	10-20	1200		12.5～15.0
w20	12-22	1000	20/14	15.0～17.0
w20+	15-25	800		18.0～20.0
w28	20-30	700	28/20	20～23
w28+	22-36	600		23～26
w40-	20-40	500		26～29
w40	30-40	450	40/28	29～32
w40+	35-45	400		32～36
w50	40-60	350	60/40	37～43

Product Tags:

cbn cubic boron nitride

cbn powder

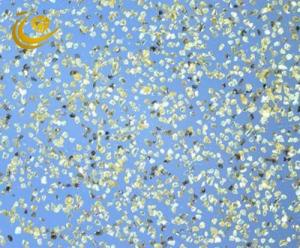

Rough Surface CBN Cubic Boron Nitride Powder 60/40 Micron Size Images
