Multi Functional Super Hard CBN Abrasive Material Higher Thermal Stability

Brand Name : Henan Baililai Superhard Materials Co., Ltd.

Model Number : CBN Monocrystal

Certification : Henan Baililai Superhard Materials Co., Ltd.

Place of Origin : Henan China

Packaging Details : 4-layer packaging bag upside down head packaging, label affixed to the outermost layer

Product name : CBN Monocrystal

Application : Abrasive refractory Industry

Usage : Polishing

Payment terms : negotiate

state : powder

Contact Now

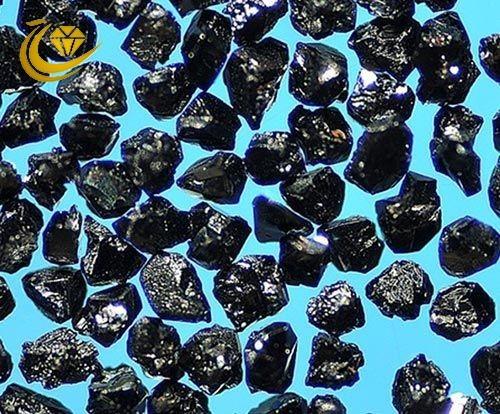

CBN Monocrystal

Introduction:

Cubic boron nitride (CBN)is a superhard material with a hardness second only to diamond.It not only has many excellent properties of diamond, but also has a higher thermal stability and chemical inertness to iron metals and alloys.Its hardness and chemical properties promote CBN is particularly suitable for grinding ferrous alloys and other Aerospace materials.The use of cubic boron nitride is a major contribution to metal processing, resulting in a revolutionary change in grinding, grinding technology is the second leap.At present, it has been widely used in aerospace, automotive military, wind power, metallurgy, electrical and other high-tech fields.

Specification table:

Grade
Size

 CBN-B10 CBN-B15 CBN-B30 CBN-A20 CBN-A25 CBN-A40 CBN-A45 CBN-A50
40/45 Y Y Y Y Y Y Y Y
45/50 Y Y Y Y Y Y Y Y
50/60 Y Y Y Y Y Y Y Y
60/70 Y Y Y Y Y Y Y Y
70/80 Y Y Y Y Y Y Y Y
80/100 Y Y Y Y Y Y Y Y
100/120 Y Y Y Y Y Y Y Y
120/140 Y Y Y Y Y Y Y Y
140/170 Y Y Y Y Y Y Y Y
170/200 Y Y Y Y Y Y Y Y
200/230 Y Y Y Y Y Y Y Y
230/270 Y Y Y Y Y Y Y Y
270/325 Y Y Y Y Y Y Y Y
325/400 Y Y Y Y Y Y Y Y



Comparison table:

BAILILAI
GB/T6406-1995

USA
ANSI US Mesh #

EC
FEPA D

International standards
ISO

Russia
GOST9206-80
35/40 35/40 D501 500/425 500/400
40/45 40/45 D426 425/355 400/315
45/50 45/50 D356 355/300 400/315
50/60 50/60 D301 300/250 315/250
60/70 60/70 D251 250/212 250/200
70/80 70/80 D213 212/180
80/100 80/100 D181 180/150 200/160
100/120 100/120 D151 150/125 160/125
120/140 120/140 D126 125/106 125/100
140/170 140/170 D107 106/90 100/80
170/200 170/200 D91 90/75
200/230 200/230 D76 75/63 80/63
230/270 230/270 D64 63/53 63/50
270/325 270/325 D54 53/45 50/40
325/400 325/400 D46 45/38 45/38
