Small High Hardness Diamond Wire Drawing Dies For Drawing Electronic Devices

Name: Small High Hardness Diamond Wire Drawing Dies For Drawing Electronic Devices
Brand: baililai
Price: 1 USD

Quality Small High Hardness Diamond Wire Drawing Dies For Drawing Electronic Devices wholesale

Brand Name : baililai

Model Number : Diamond wire drawing dies

Certification : 9001

Place of Origin : zhengzhou

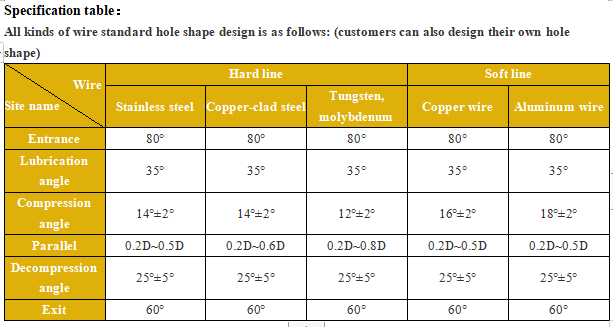

Lubrication angle : 35°

Compression angle : 14°±2°

Parallel : 0.2D~0.5D

Decompression angle : 25°±5°

Exit : 60°

Entrance : 80°

Contact Now

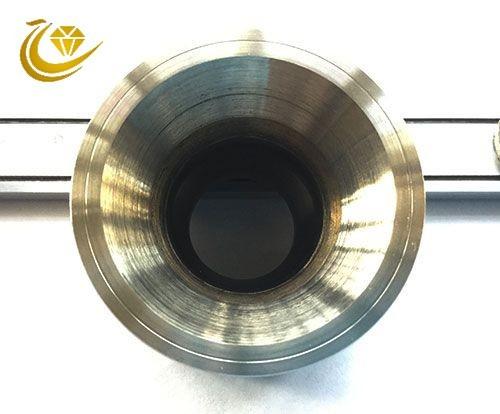

Diamond wire drawing dies

Diamond wire drawing dies

Introduction:

Diamond wire drawing dies widely used, such as drawing electronic devices, radar, TV, instruments and aerospace precision wire used as well as commonly used tungsten, molybdenum wire, stainless steel wire, wire and cable wire and various alloy wire.Diamond wire drawing dies wear resistance, high service life.

Product introduction:

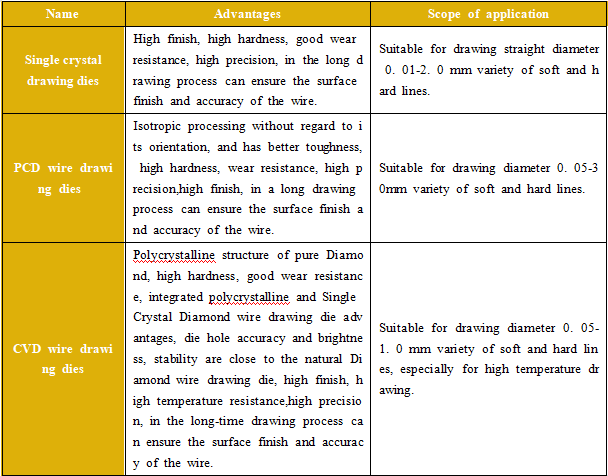

Our Diamond wire drawing die is divided into single Crystal Diamond wire drawing die, PCD wire drawing die and CVD wire drawing die three series for users to choose.Suitable for drawing all kinds of soft lines, such as: gold, silver, platinum, brass, phosphor bronze, aluminum;and hard lines, such as: iron wire, stainless steel wire, nickel wire, Chrome wire, molybdenum wire, tungsten wire, copper clad steel wire.

Small High Hardness Diamond Wire Drawing Dies For Drawing Electronic Devices

Product Tags:

polycrystalline diamond cutting tools

polycrystalline diamond pcd tools

Small High Hardness Diamond Wire Drawing Dies For Drawing Electronic Devices Images
